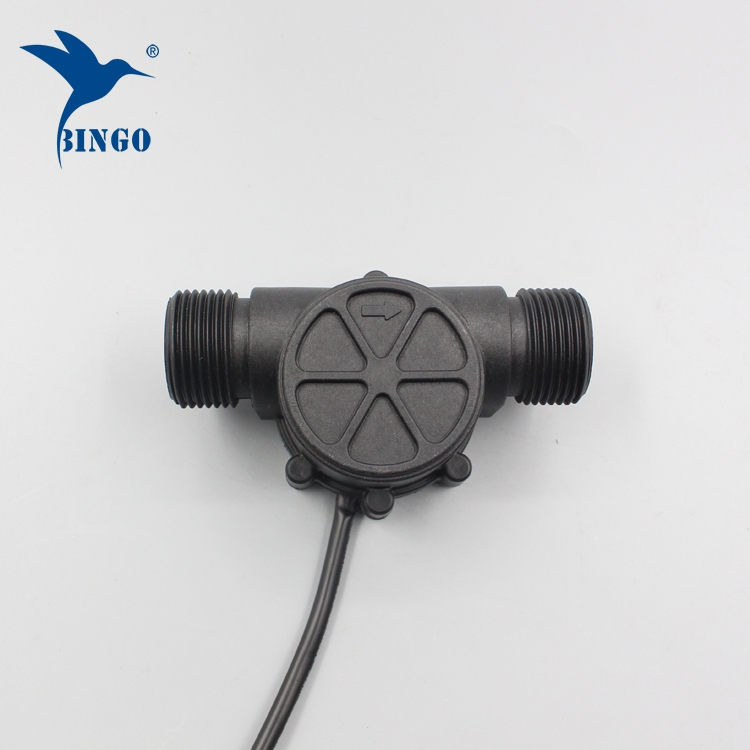

g1 plastic water flow sensor

Quick Details

Thread size: G1"
Body Material: PA66+30%Glass
Flow Pulse: F=3.6Q+-10% Q=L/min
Mounting Position: Vertical or Horizontal
Work Temperature: -20~+140°C
Precision: 2~60L/min(Max)
Color: Black
Suffering pressure: 1.5 MPa
Max output pulse voltage: >DC 4.7 V
Min Output pulse voltage: <DC0.5V

Electrical Characteristic

Suffering Pressure: 1.5Mpa
Operate Temperature: -20~+80°C
Min insulation Resistance: 100M ohm
Precision: 1~60L/min(Max)
Flow Pulse: F=3.6Q+-10% Q=L/min
Mounting Position: Vertical or Horizontal

Technical Characteristic

Output Pulse Duty Cycle: 50% ± 10%
Max Output Pulse Voltage: >DC4.7V (Input Votage:DC5V)
Min Output Pulse Voltage : <DC0.5V( Input Votage:DC5V)
Electrical Life: 1x107 (5Vdc, 10mA)
Body Material: PA66+30%Glass Black

Switch Characteristic	Physical Characteristic
1. Suffering Pressure: 1.5Mpa	1. Output Pulse Duty Cycle: 50% ± 10%
2. Operate Temperature: -40~+150°C	2. Max Output Pulse Voltage: >DC4.7V (Input Votage:DC5V)
3.Min insulation Resistance: 100M ohm	3.Min Output Pulse Voltage : <DC0.5V( Input Votage:DC5V)
4. Precision: 1~60L/min(Max)	4. Electrical Life: 1x107 (5Vdc, 10mA)
5. Flow Pulse: F=7.5Q-3 Q=L/min	5.Body Material: PA66+30%Glass Gray
6.Mounting Position: Vertical or Horizontal
