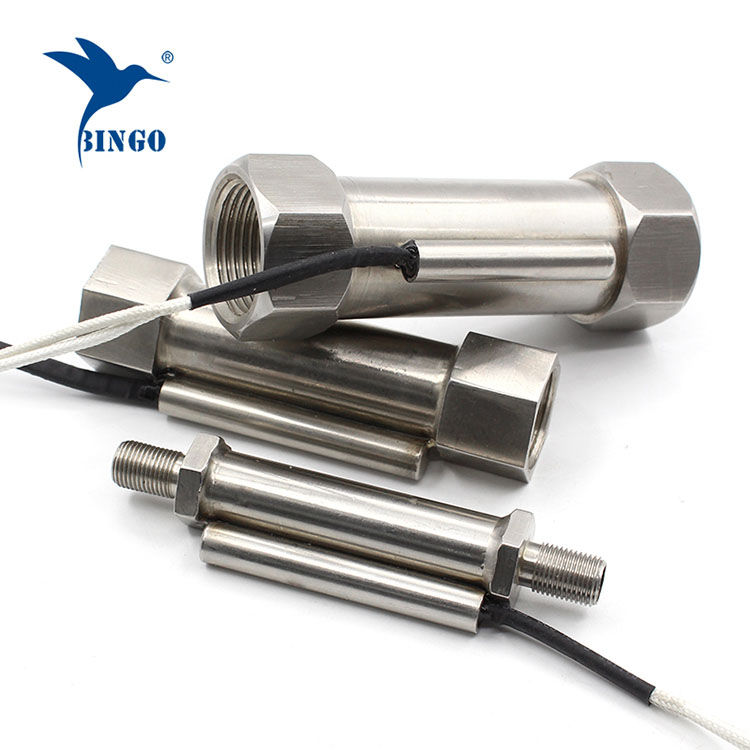

piston type water flow switch, new design ss material cheap flow switch

Quick Details

Model Number: FS-M-PSS02 Series
Media Type: Liquid
Operating Temperature: -30℃~100℃
Media temperature: -30°C~100°C
Storage temperature: -30°C~85°C
Output: SPST magnetic switch normally open or normally closed output
Magnetic switch parameters: 1A(max),110VAC/DC,50W(MAX)
Cable: Standard Configuration 0.5m, Gawain line 2*0.3mm2
Withstand voltage: 30bar, (100bar can be customized)
Housing protection grade: IP65
Weight: 135G
Connection: G1/2''

Product description

Working principle

Piston type flow switch is composed of a column core, a reset spring, wrought copper or poly carbon shell and the sensor parts. The shell is POM plastic or stainless steel 316L, Core using neodymium iron boron permanent magnetic material, and sensor magnetic switch is power components. The interface of water inlet and the outlet is standard pipe thread, thread optional. Piston type flow switch is for electric water heater, solar water heaters, air conditioners and other water system of water circulation control, water control, water heating control, water pump switch control, electromagnetic valve on-off control or water power, water power control process. When reach a certain flow,it will transmit water flow into sensor parts of switch signal.

Application for examples

Piston type water flow switch FS-M-PSS02 series is developed for the field of non-air-conditioned. In
the flow switch, there is a high-performance permanent magnet mounted, which through
the circulation effects, and drive the magnetic switch which is sealed in the upper part of
the flow switch.

Oil Flow Switch FS-M-PSS02 Series can widely used in petrochemical industry, environmental protection,water treatment, welding equipment and laser systems, the occasions which are required traffic monitoring.

Technical parameter

Media temperature	-30°C~100°C
Storage temperature	-30°C~85°C
Average pressure loss	0.01bar (max. flow)
Output	SPST magnetic switch normally open or normally closed output
Magnetic switch parameters	1A(max),110VAC/DC,50W(MAX)
Cable	Standard Configuration 0.5m, Gawain line 2*0.3mm2
Withstand voltage	30bar, (100bar can be customized)
Housing protection grade	IP65
Material	wetted shell: Stainless Steel Piston: plastic Spring: Stainless Steel
