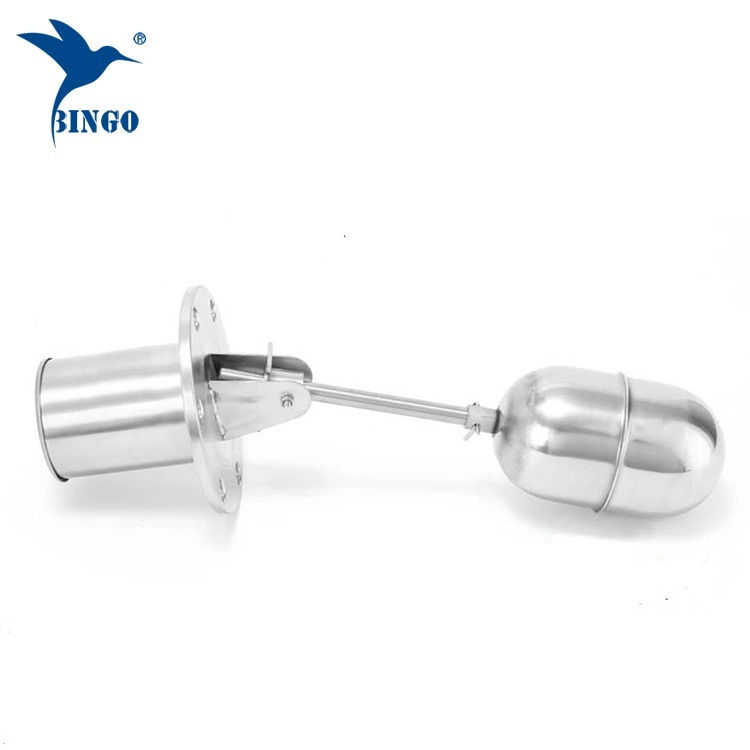

side mounted float level switch water level controller level control valve

Basic Info

Model NO.: UQK-01-02-03
Principle: Magnetic Sensors
Specification: CE, SGS, ISO

Product features

All stainless steel for high pressure and temperature
Materials of construction comply with FDA food contact regulations
Exceptionally accurate and rugged for higher temperatures and in pressurized or corrosive liquids
For oils, water and chemicals
UL recognized, CSA listed

Product Description

Our type magnetic float ball liquid level switch is composed of reed and magnetic float ball, working with lever as principle. When the float ball rises or falls with the liquid to the level of the switch, the magnetic forces of magnetic witch inside of the float ball will cause the reed switch to turn ON or OFF. This type level controller can match with DCS, PLC to realize remote control and alarm.

Working principle

floater level controller is consist of floater, micro active Switch, and Housing.
A pair of repellent polarity magnetic Steel respectively installed at the end of floating ball and micro switch. When floating ball moves up and down in the action range, the magnetic steel is bobbing up and down accordingly. The Housing drive the magnetic steel on the micro switch components and makes the contacts output ON or OFF signal. The contact effect ON or OFF signal only if floater moves between high limit and low limit location.

Why Choose Us

1.Product development and special customized ability for clients
2.The independent intellectual property rights and the international certification authority
3.Higher cost performance - product quality exceed international counterparts
