transmitter high reliability water flow sensor thermal dispersion flow switch price

Quick Details

Model Number: TFS water flow switch price
Media Type: water flow switch price
Operating Temperature: -20~80℃
Flow Rate: 1~150cm/s(water),3~300cm/s(oil)
Application: Monitor Liquid Flow water flow switch price
Output: relay(SPDT),PNP,NPN transistor
Material: SUS304/316
Medium: Caustic Liquid
Protection: IP67
Pressure rating: 10MPa

Product Description

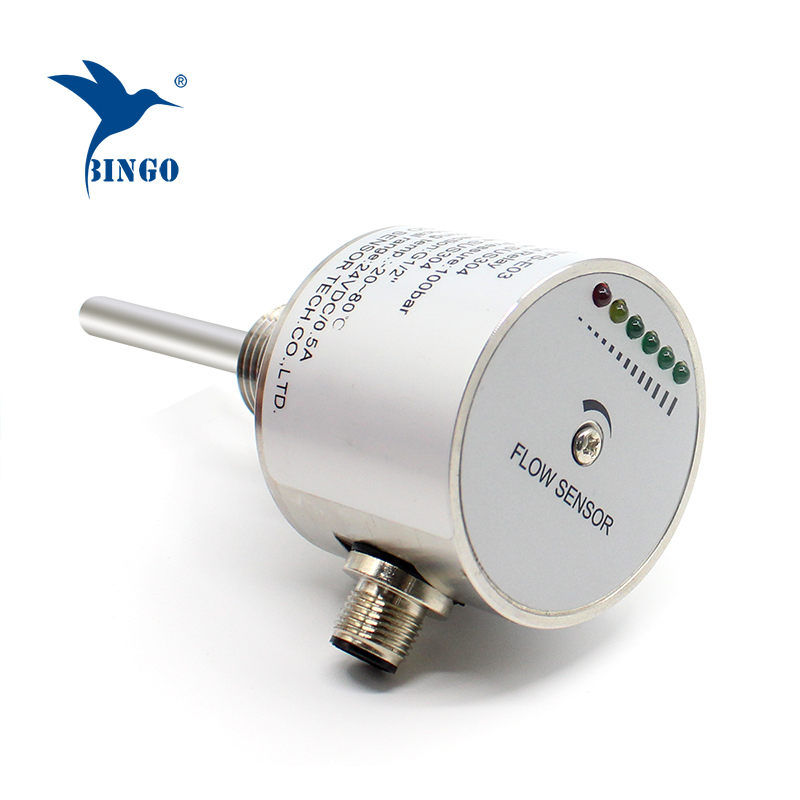

Flow switch is a kind of real-time monitoring of the liquid flow in the pipeline, and the output signal measuring instrument. This product adopts all metal housing, no moving parts, the switch quantity can be continuously adjustable, pressure loss is small, compact structure, a plurality of LED real time display of flow state and the state of the switch. Easy installation, suitable for a variety of diameter of product requirements, can be used to monitor the fluid in the pipeline flow, stop idling protection monitoring or prevent pump. Widely used in the hydropower industry, industrial hydraulics of flow monitoring.

Specifications

·Measure range:1~150cm/s(water),3~300cm/s(oil);

·power supply:24±20%VDC;

·Current consumption:<90mA;

·signal output:relay(SPDT),PNP,NPN transistor;

·Transistor characteristics:

Switch voltage: 24±20%VDC;

Switch current: ≤1.2A;

·The relay characteristics:

Switch voltage: ≤250VAC/30VDC;

Switch current: ≤3A;

·The initialization time:typical value 8s(2~15s);

·response time:typical value 2s(1~15s);

·Temperature gradient:max250℃/min;

·protection:IP67

·medium temperature:-20~80℃;

·ambient temperature:-10~70℃;

·storage temperature:-20~85℃;

·Pressure rating:10MPa;

·Probe materials:304 stainless steel

·Housing material:304 stainless steel

FAQ

1 Q:What detailed information do I need to provide if I want to place an order?
A:We need to know the following information: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2 Q:Do you have any discount?
A:Yes, if you buy large QTY, please send us a email, we will give you a big discount.

3 Q:What's the delivery time for water flow sensor Thermal Dispersion Flow Switch Price?
A:According to the specification and quantity of your order, generally 7-10 days for normal
standard products within 50pcs.

4 Q:Do you have overseas distributor?
A:Yes,we have distributors in America,United Kingdom, Austrilia and so on.

5 Q:Can we use our logo on the products?
A:Yes.We can provide OEM and sign a licensing agreement.

6 Q:Are you manufacturer or trading company?
A:We are manufacturer with 20 years of experience.Welcome to visit our company.

7 Q:Do you have any certification?
A:Yes,according to the different products,overpass CE, RoHS, ISO, Ex,Ul etc,we can offer certificates.

8 Q:How the stability of products?
A:3~5 years is ok in normal situation.

9 Q:Do you have products with HART or RS485+temperature signals?
A:Yes.we have.
